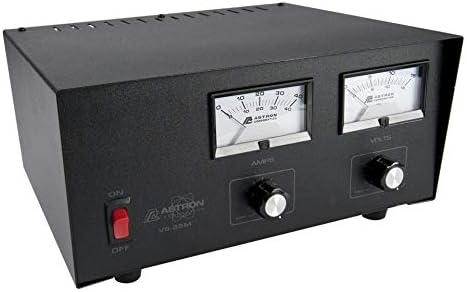

Astron VS-35M-AP Desktop Variable Voltage (2-15VDC) Linear Power Supply with Meters and Anderson Power Poles, 35A Peak, 25A Continuous
Product details
| Management number | 209085826 | Release Date | 2026/03/29 | List Price | $170.00 | Model Number | 209085826 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Features and SpecificationsSOLID STATE ELECTRONICALLY REGULATEDFOLD BACK CURRENT LIMITING Protects Power Supply from excessive current and continuous shorted outputCROWBAR OVER VOLTAGE PROTECTION ON ALL MODELSMAINTAIN REGULATION AND LOW RIPPLE at low line input VoltageTHREE CONDUCTOR POWER CORDHEAVY DUTY HEAT SINKINPUT VOLTAGE: 105-125VACEXTERNALLY ADJUSTABLE VOLTAGE: 2-15VDCRIPPLE: LESS THAN 5MV PEAK TO PEAK (full load and low line)LOAD REGULATION: 0.08% from 0 to Full Continuous LoadEFFICIENCY: 77%OPERATING TEMP: -10 to 55°CCONTINUOUS DUTY:@13.8VDC: 25 Amps@10.0VDC: 15 Amps@05.0VDC: 7 AmpsICS:@13.8VDC: 35 Amps@10.0VDC: 16 Amps@05.0VDC: 8 Amps
- EXTERNALLY ADJUSTABLE VOLTAGE: 2-15VDC
- POWER TERMINALS: 1/4"-20 Screw Type and Anderson Power Poles
- FAN COOLED: No
- Separate Voltage and Amperage Meters Included
| UPC | 712265211106 |
|---|---|
| Brand | Astron |
| Color | Black |
| Manufacturer | Astron |
| Model Number | VS-35M-AP |
| Maximum Power | 375 Watts |
| Output Current | 25 Amps |
| Output Voltage | 15 Volts |
| Output Wattage | 375 Watts |
| Item Dimensions | 11 x 11 x 5 inches |
| Mfr Part Number | VS-35M-AP |
| Connector Type Used on Cable | screw |
